Xm- Marine Mount Ant XMARINE

Description

Product Long Description with Technical Data

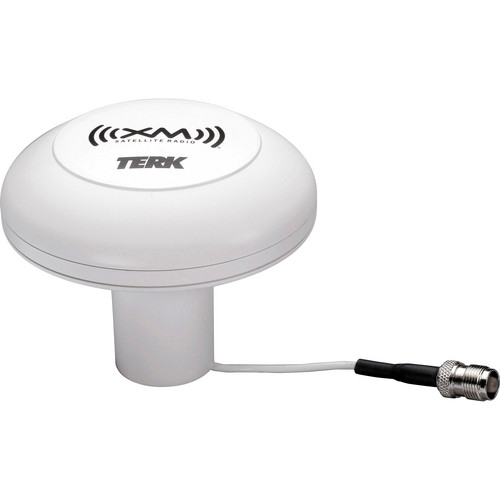

The Terk XMARINE XM Marine Mount Antenna is a high-performance satellite radio antenna specifically engineered to provide crystal-clear SiriusXM reception in harsh marine environments. It is a robust and reliable solution for enjoying satellite radio on boats, RVs, and other recreational vehicles.

This antenna is built to withstand the rigors of marine life, featuring a sealed, waterproof housing that is impervious to damage from salt water, extreme weather, and high vibration. Its flexible design offers multiple installation options: it can be flush-mounted directly to a flat surface or mounted to any standard 1″-14 threaded mast or rail mount (sold separately). This versatility ensures it can be installed in the best possible location for optimal signal reception on a variety of vessels, from small fishing boats to large yachts.

The XMARINE antenna comes with a generous 25-foot RG-174 coaxial cable to provide ample length for routing to your SiriusXM tuner. This single-cable installation simplifies the setup process. It’s important to note that the antenna must be connected to a compatible SiriusXM tuner, such as the SXV300, which is sold separately.

Technical Data:

• Manufacturer Part #: XMARINE
• Brand: Terk (SiriusXM)
• Frequency: 2332.5 to 2345 MHz
• Bandwidth: 12.5 MHz
• Impedance: 50 ohms
• Gain: 35.5dB (typical)
• Noise Figure: 0.8dB (maximum)
• Polarization: LHCP (Circular)
• Weather Rating: IPX67 Rated (protected from immersion in water up to 1m)
• Cable Length: 25′ extension RG-174 coax cable
• Connectors: TNC Female (pigtail), TNC Male and SMB (extension cable)
• Mounting: Compatible with standard 1″-14 marine threads for mast or rail mounting, or can be flush-mounted.
• Dimensions:
  • Deck Mount Height: 1.08″
  • Mast Mount Height: 3.13″
  • Max Diameter: 3.75″
